產 品 :
氧化鈰拋光粉
用於:
•光學鏡片(相機)拋光.
•平板玻璃(稜鏡)拋光.
•石英水晶拋光.
提供卓越的加工完成面
•各種玻璃產品
拋光:
•相機鏡片
•玻璃模造鏡片
•塑膠稜鏡
•投影機鏡片
•玻璃鏡片
•平板玻璃(薄片)
•石英水晶 |
 |
|
|
|
|
|
|

一般常用之光學鏡片拋光粉
|
EIC CODE |
TREO % |
CeO2 % |
Rare Earth Fluorides % |
Particle Size |
Lens Abrasion (K9=100) |
Refer to |
Application |
Suitable lens |
Specification |
|

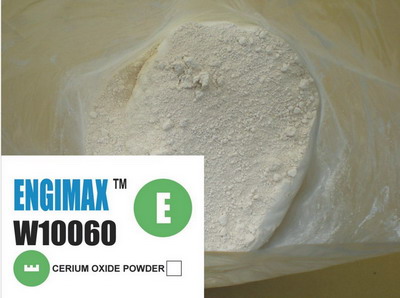

EIC-W10060 |
93~97 |
88~90 |
0 |
D 50 :1.7~2.1 μm |
Dmax:10.5μm |
50~100 |
FUJIMI CEPOL 20 |
Lens Diameter
(Φ20mm under) |
S-LAH65, S-LAH59, S-LAH55 , S-LAH58,
S-LAH64, S-LAM54, S-LAH66, S-LAM60, S-LAH53,S-LAH60, S-LAH51, S-LAH52,
S-LAH63, S-LAM66 ,BK7 |
pdf.download |
|

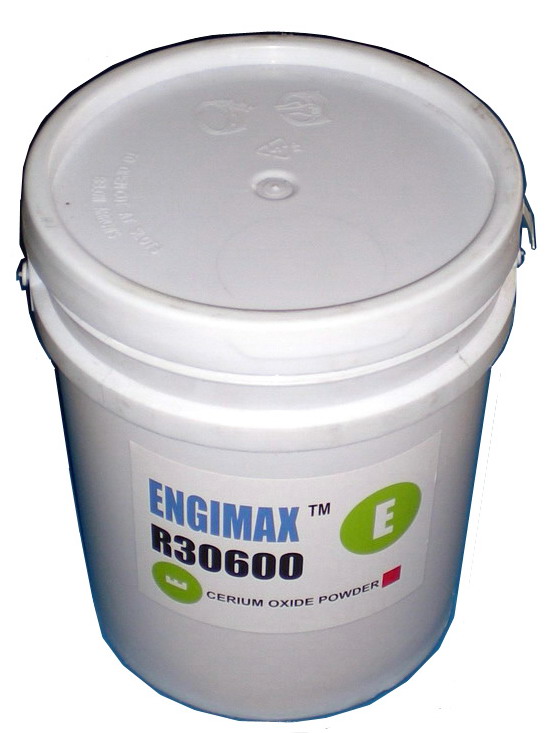

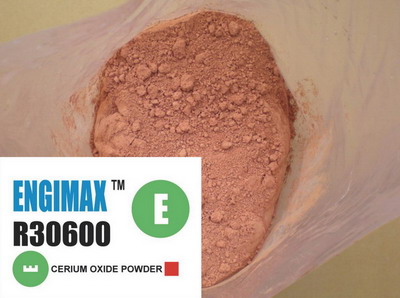

EIC-R30600 |
90~95 |
68~75 |
4~6 |
D50: 1.1~1.3μm |
Dmax:6μm |
150~440 |
MITSUI MINING E30 |
Lens Diameter (Φ20mm under) |
S-BSM 3, S-TIH53,S-TIH 6, S-PHM53,S-PHM52 |
pdf.download |
|

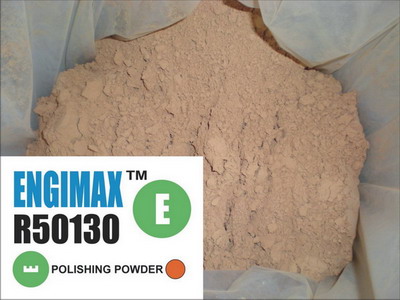

EIC-R50130 |
95 |
60 |
3~5 |
D 50 :2.8~3.0 μm |
D97:8.5μm |
50~135 |
FUJIMI CEPOL 132 |
Lens Diameter
(Φ20mm above) |
LAH.LAM.BK7 |
pdf.download |

高品質之光學鏡片拋光粉
|
EIC CODE |
TREO % |
CeO2 % |
Rare Earth Fluorides % |
Particle Size |
Lens Abrasion (K9=100) |
Refer to |
Application |
Suitable lens |
Specification |
|

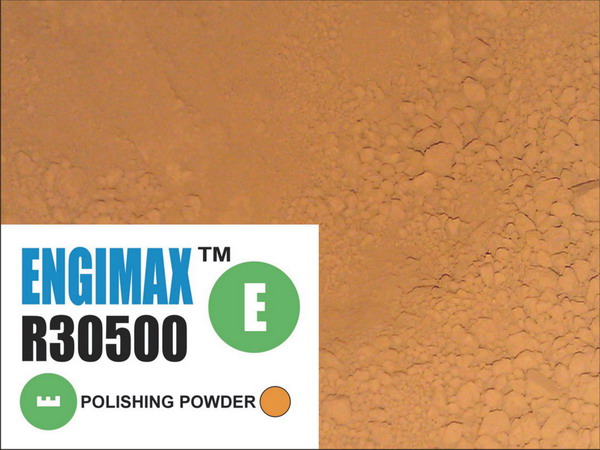

EIC-R30500 |
over 86 |
over 75 |
5~7 |
D 50 :1.3~1.7 μm |
Dmax:10.5μm |
120-~300 |
CEPOL 132,MITSUI MINING E30 |
Lens Diameter (Φ20mm above) |
S-BSM 3, S-TIH53, S-TIH 6,S-PHM53, S-PHM52 |
pdf.download |
|

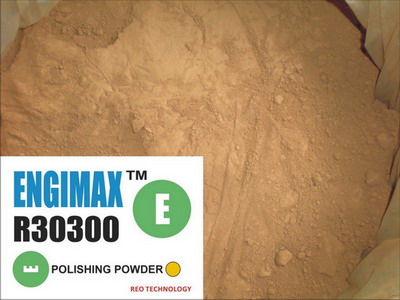

EIC-R30300 |
93~97 |
65~70 |
3~5 |
D 50 :2.8~3.0 μm |
D97:8.5μm |
50~135 |
FUJIMI CEPOL 132 |
Lens Diameter (Φ20mm above) |
LAH,LAM,BK7
Quartz crystal |
pdf.download |

平板玻璃/ TFT-LCD玻璃
拋光粉
|
EIC CODE |
TREO % |
CeO2 % |
Rare Earth Fluorides % |
Particle Size |
Lens Abrasion (K9=100) |
Refer to |
Application |
Advantage |
Specification |
|

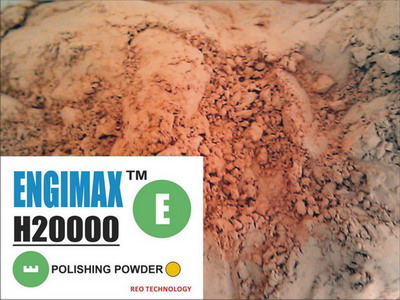

EIC-H20000 |
95 |
60 |
3~5 |
D50 : 0.7-1.0µm |
D97:3.5µm |
|
Supplied by AGC SEIMI |
Flat Glass,LCD,
TFT-LCD.Mobile control panel |
Suitable for the glass with caoting |
|
|

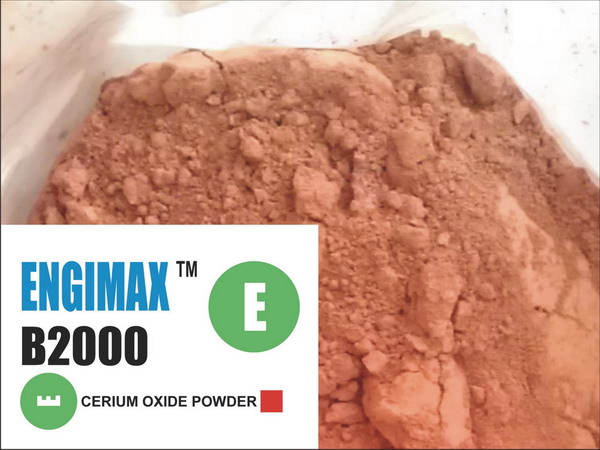

EIC-B2000 |
95 |
60 |
0 |
D50 : 0.8-1.2µm |
D97:3.5µm |
|
|
Flat Glass,LCD,
TFT-LCD.Mobile control panel |
New technic : Suspension coating
on Ceo2 particle surface |
pdf.download |
|

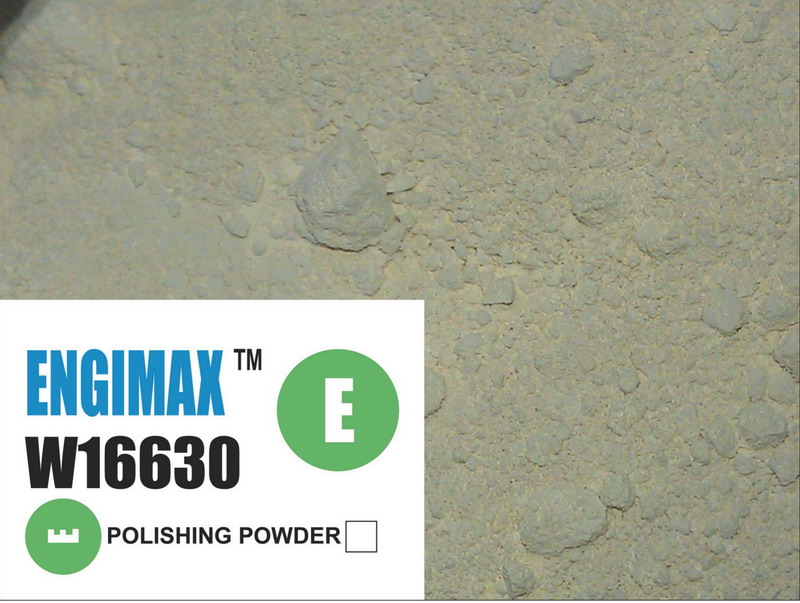

EIC-W16630 |
95 |
65 |
5 |
D50 : 0.8-1.2µm |
D97:<4.0µm |
|
|
Flat Glass,LCD,
TFT-LCD.Mobile control panel |
|
pdf.download |

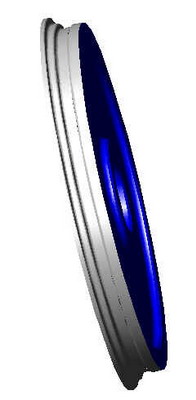

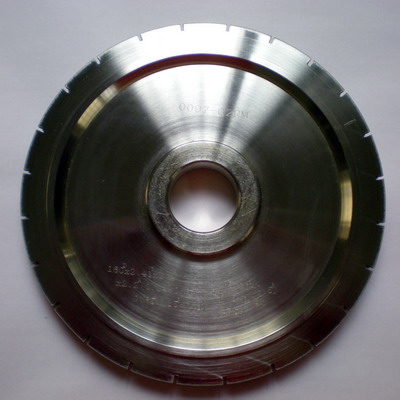

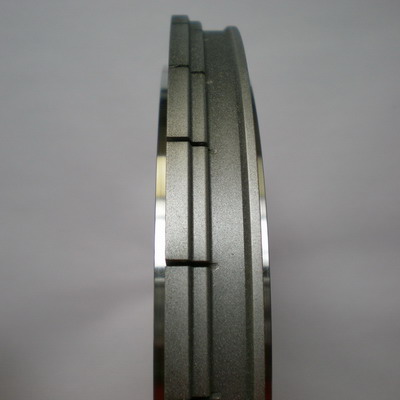

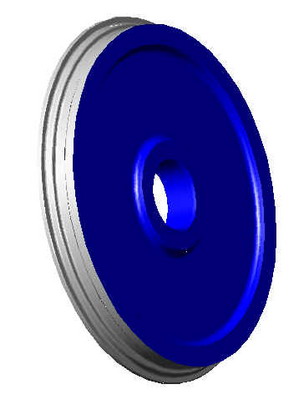

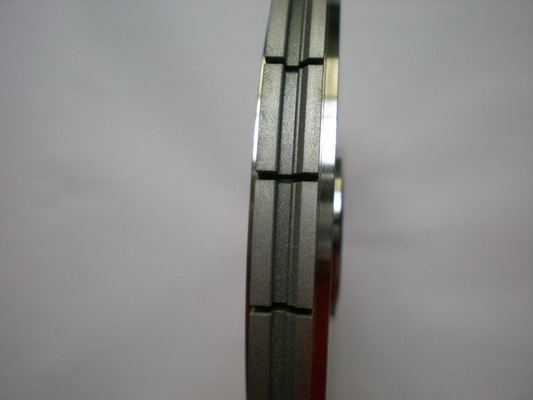

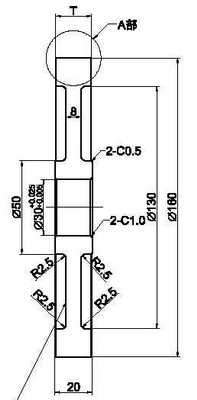

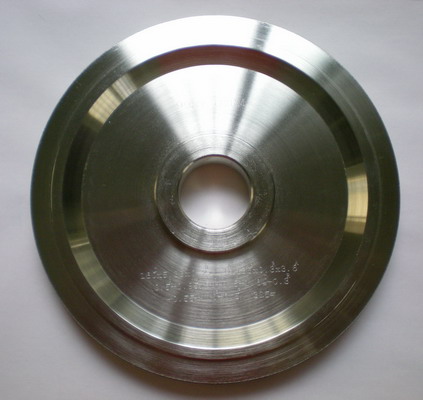

客製化(訂製)鑽石芯取砥石/CG砥石
我们的砥石採用日本鑽石粒,高品質可滿足最嚴苛要求及高效能表現,
等同日本產品的標準!
